Home > Products > SBC

Raspberry Pi 500

A fast, powerful computer built into a high-quality keyboard, for the ultimate compact PC experience.

Key Features

  • 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache

  • 8GB LPDDR4X-4267 SDRAM

  • Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®

  • 32GB Class A2 microSD included

  • Bluetooth 5.0, BLE

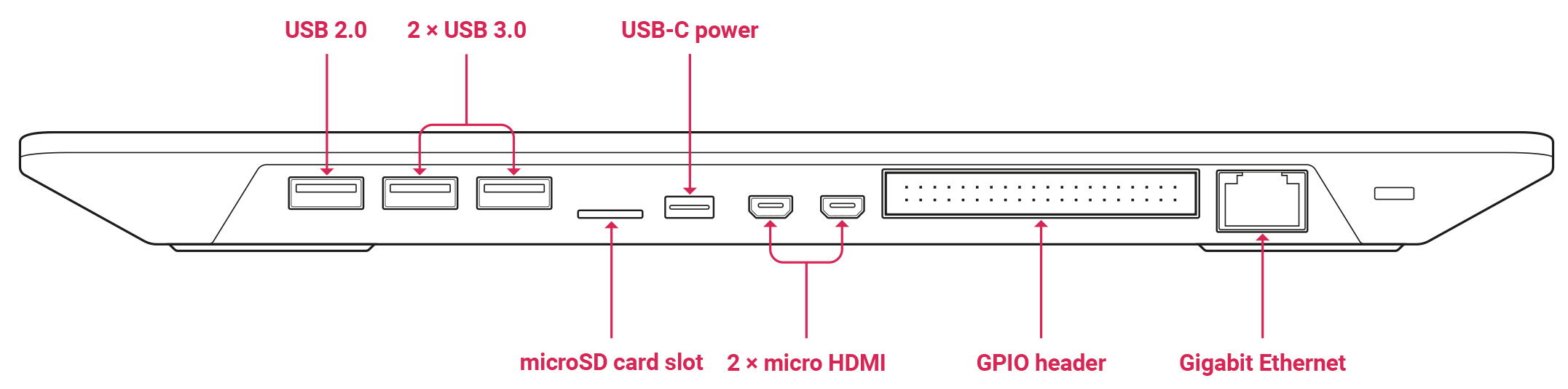

  • Gigabit Ethernet

  • 2 × USB 3.0 port and 1 × USB 2.0 port

  • Horizontal 40-pin GPIO header

  • 2 × micro HDMI® port (supports up to 4Kp60)

  • H.265 (4Kp60 decode)

  • OpenGL ES 3.0 graphics

  • SD card support: microSD card slot for operating system and data storage

  • Keyboard: 78-, 79- or 83-key compact keyboard (depending on regional variant)

  • Power: 5V DC via USB connector

Docs
Type Title Publish Time
brief raspberry-pi-500-product-brief.pdf 2025-01-15
Related Products
Raspberry Pi CM5

The Raspberry Pi Compute Module 5 (CM5) is a System on Module (SoM) containing processor, memory, eMMC Flash, and supporting power circuitry.

Raspberry Pi CM4

Raspberry Pi Compute Module 4 is a compact, versatile SoM offering the power of a Raspberry Pi 4 with customizable options for embedded applications.


Raspberry Pi 5

Raspberry Pi 5 is a high-performance single-board computer with advanced features like a powerful 64-bit quad-core processor, dual 4K HDMI output, USB 3.0 ports, and enhanced wireless connectivity.

Raspberry Pi 4 Model B

Raspberry Pi 4 Model B is a powerful single-board computer featuring a quad-core processor, up to 8GB RAM, dual 4K display support, and enhanced connectivity options, making it ideal for various applications.

EDATEC

Started in 2017, EDATEC has been certified as one of the global design partners of Raspberry Pi since 2018, providing Raspberry Pi based industrial computers design and manufacturing services for global customers.
